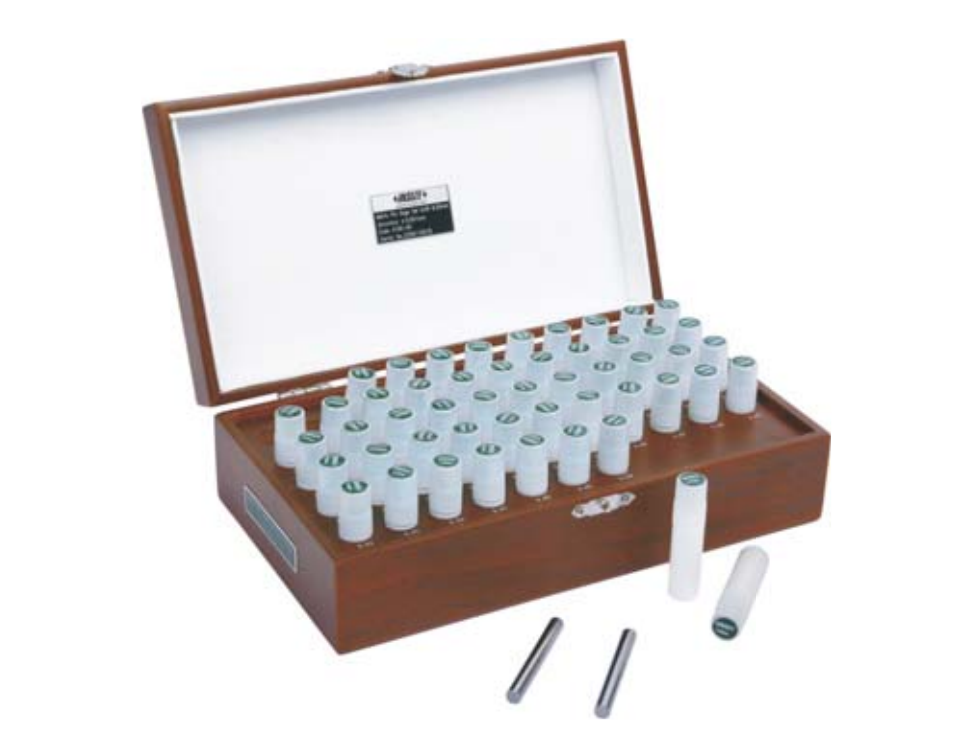

INSIZE 公制针规套装，51块 3.5mm-4.0mm，4166-4

型号

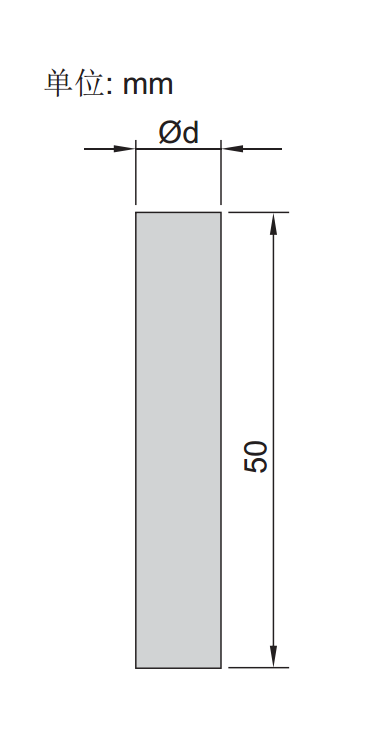

直径Ød(mm)

间隔

每套数量

直径精度

4166-0D

0.20, 0.21, 0.22, ???? 0.50

0.01mm

31

±1μm

4166-1

0.50, 0.51, 0.52, ???? 1.00

0.01mm

51

±1μm

4166-1D

1.00, 1.01, 1.02, ???? 1.50

0.01mm

51

±1μm

4166-2

1.50, 1.51, 1.52, ???? 2.00

0.01mm

51

±1μm

4166-2D

2.00, 2.01, 2.02, ???? 2.50

0.01mm

51

±1μm

4166-3

2.50, 2.51, 2.52, ???? 3.00

0.01mm

51

±1μm

4166-3D

3.00, 3.01, 3.02, ???? 3.50

0.01mm

51

±1μm

4166-4

3.50, 3.51, 3.52, ???? 4.00

0.01mm

51

±1μm

4166-4D

4.00, 4.01, 4.02, ???? 4.50

0.01mm

51

±1μm

4166-5

4.50, 4.51, 4.52, ???? 5.00

0.01mm

51

±1μm

4166-5D

5.00, 5.01, 5.02, ???? 5.50

0.01mm

51

±1μm

4166-6

5.50, 5.51, 5.52, ???? 6.00

0.01mm

51

±1μm

4166-6D

6.00, 6.01, 6.02, ???? 6.50

0.01mm

51

±1μm

4166-7

6.50, 6.51, 6.52, ???? 7.00

0.01mm

51

±1μm

4166-7D

7.00, 7.01, 7.02, ???? 7.50

0.01mm

51

±1μm

4166-8

7.50, 7.51, 7.52, ???? 8.00

0.01mm

51

±1μm

4166-8D

8.00, 8.01, 8.02, ???? 8.50

0.01mm

51

±1μm

4166-9

8.50, 8.51, 8.52, ???? 9.00

0.01mm

51

±1μm

4166-9D

9.00, 9.01, 9.02, ???? 9.50

0.01mm

51

±1μm

4166-10

9.50, 9.51, 9.52, ???? 10.00

0.01mm

51

±1μm
